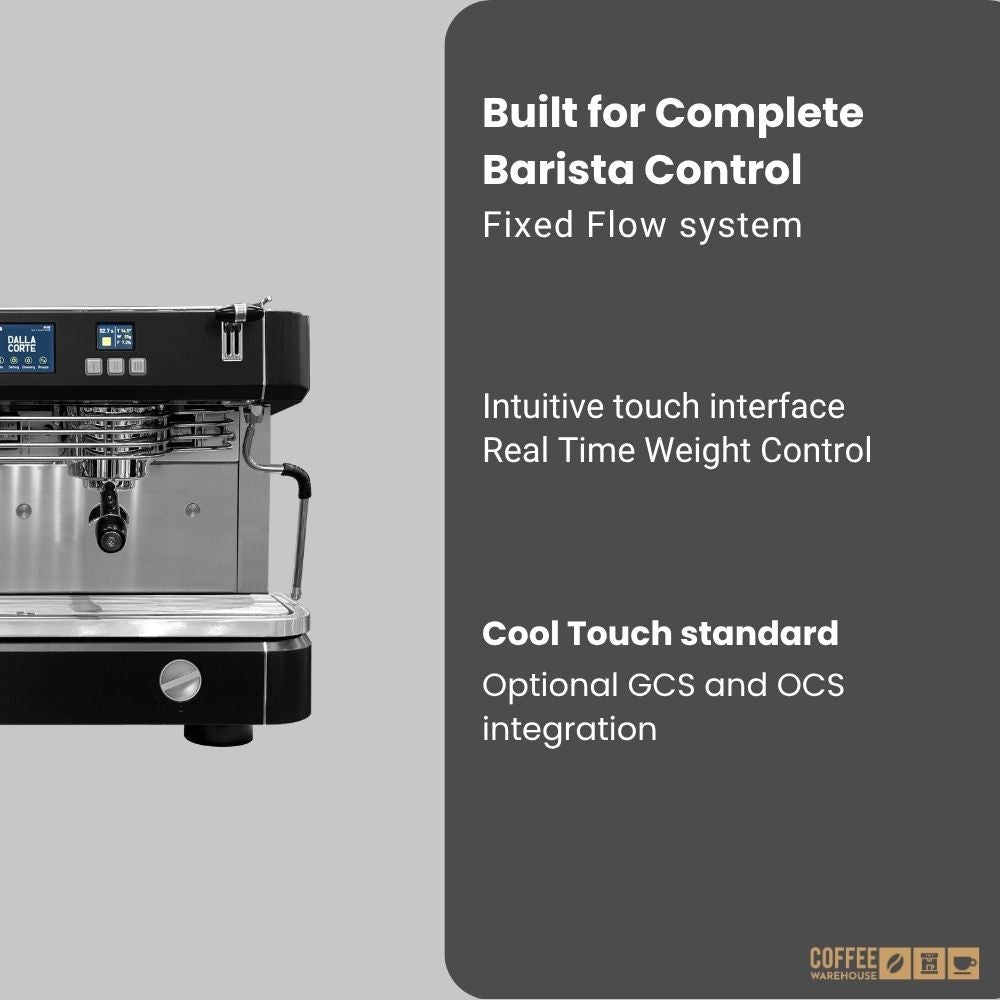

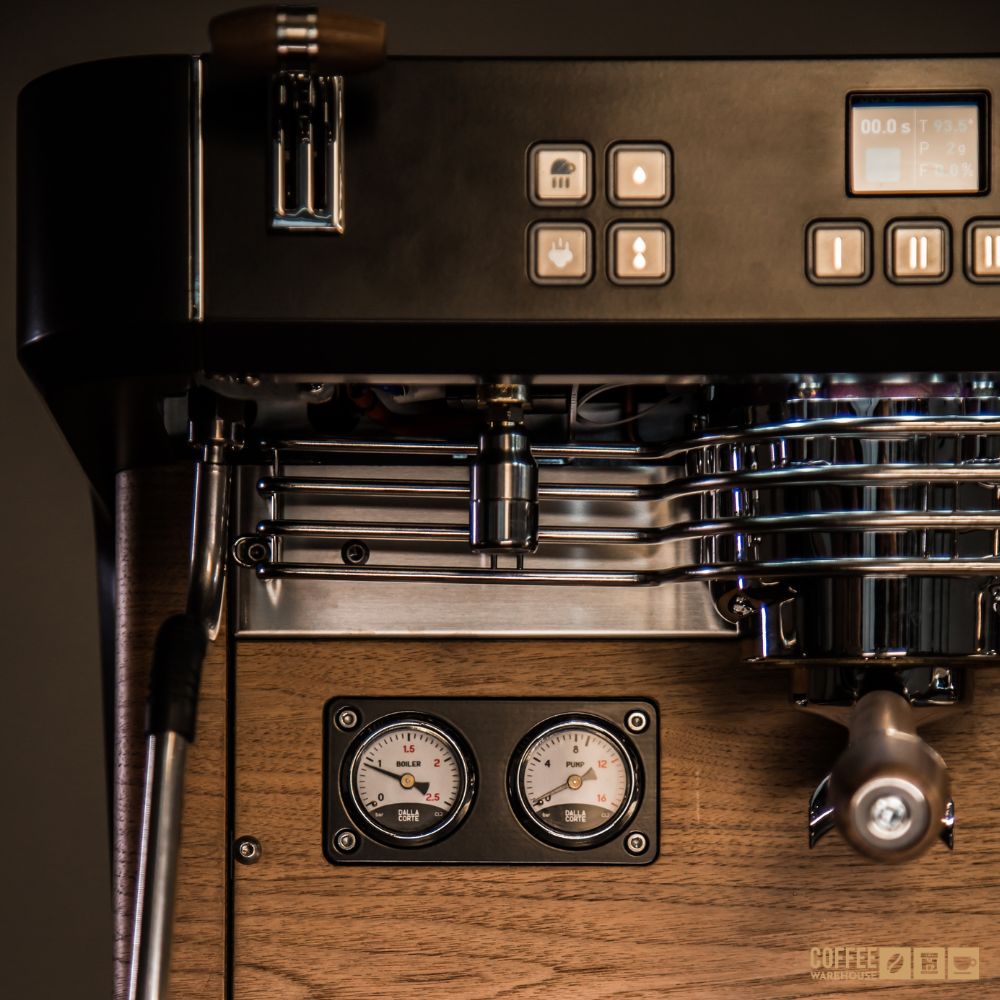

Dalla Corte XT Barista 3 Group Espresso Machine

Dalla Corte XT Barista 3 Group Espresso Machine

The Dalla Corte XT Barista 3 Group is a traditional commercial multi-boiler espresso machine designed for specialty cafés that want hands-on control over flow, temperature and dose across a three-group bar. Manual flow profiling, independent PID control and an integrated Weight System give baristas more control directly at the machine, while optional GCS and MCS can extend the workflow into grinder and milk management.

Managing several coffees during busy service can become difficult when extraction adjustments depend on separate scales, repeated grinder corrections and one fixed brewing approach. A larger bar also needs those controls to remain accessible across multiple working groups.

The XT Barista brings those variables together in a three-group platform. Baristas can adjust flow in real time on each group, monitor brewing variables, work with independent temperature control and use the integrated Weight System for dosing information. Optional Grinder Control System and Milk Control System can add further automation when required.

Highlights

• Manual flow profiling for each group, lets baristas adjust flow rate in real time and develop different extraction approaches for different coffees.
• Three independent group systems, support a multi-barista workflow while allowing brewing parameters to be managed by group.
• Integrated Weight System, converts water flow into grams and records water quantity and espresso dosage without relying on separate scales.
• Independent PID temperature control, lets each group be managed separately for different coffee recipes and origins.
• 13 L main boiler, supports the larger three-group XT configuration alongside 0.5 L group capacity.
• Optional Grinder Control System, communicates with compatible Dalla Corte grinders to automatically adjust grind size and dose.
• Optional Milk Control System, adds button-activated assisted steaming with a selectable milk temperature.

Who It's For

• Specialty cafés with multi-barista workflows that want three groups available while retaining hands-on extraction control.
• Coffee programs serving multiple coffees that want to adjust flow and temperature around different origins and roast profiles.

• Design-focused cafés that want a larger commercial espresso machine with customizable exterior materials.

Not the right fit? If your coffee preferences, volume requirements, or installation needs are different, call or visit our showroom. We'll help you choose the right coffee machine for your setup.

Built for Commercial Coffee Service

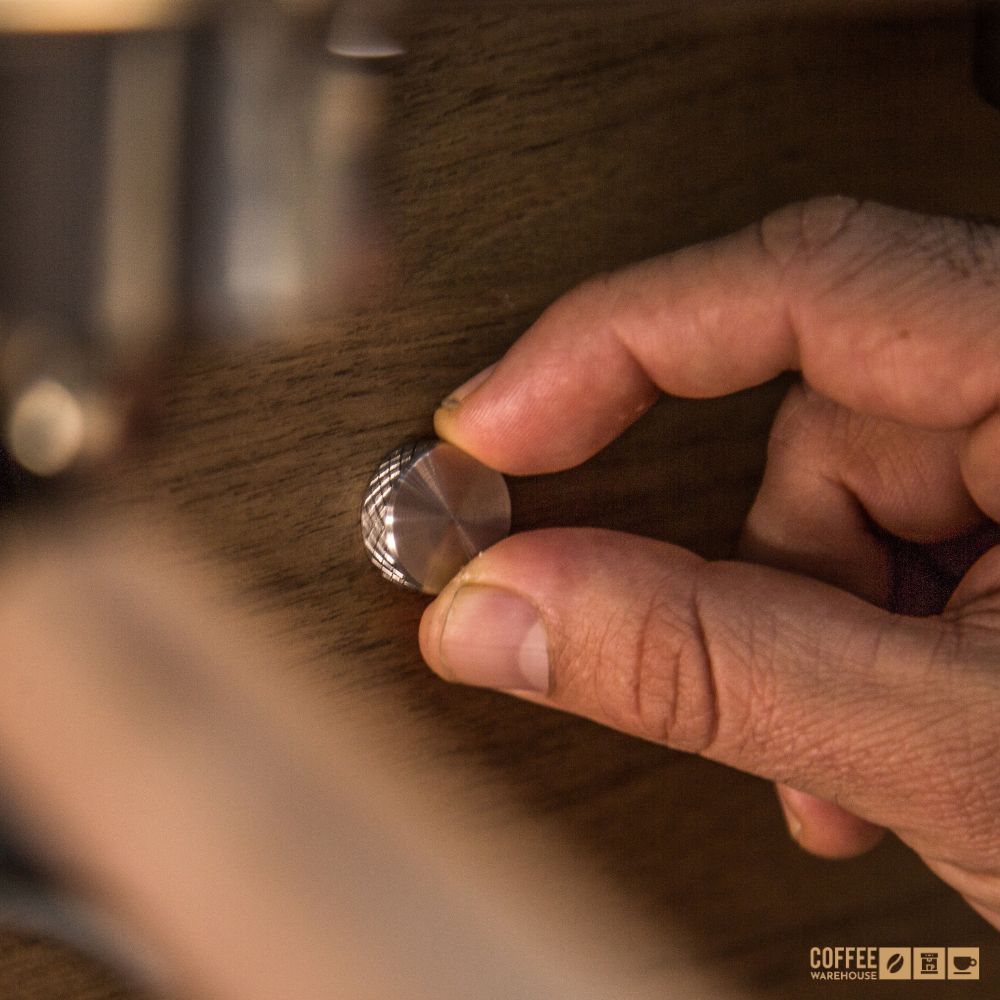

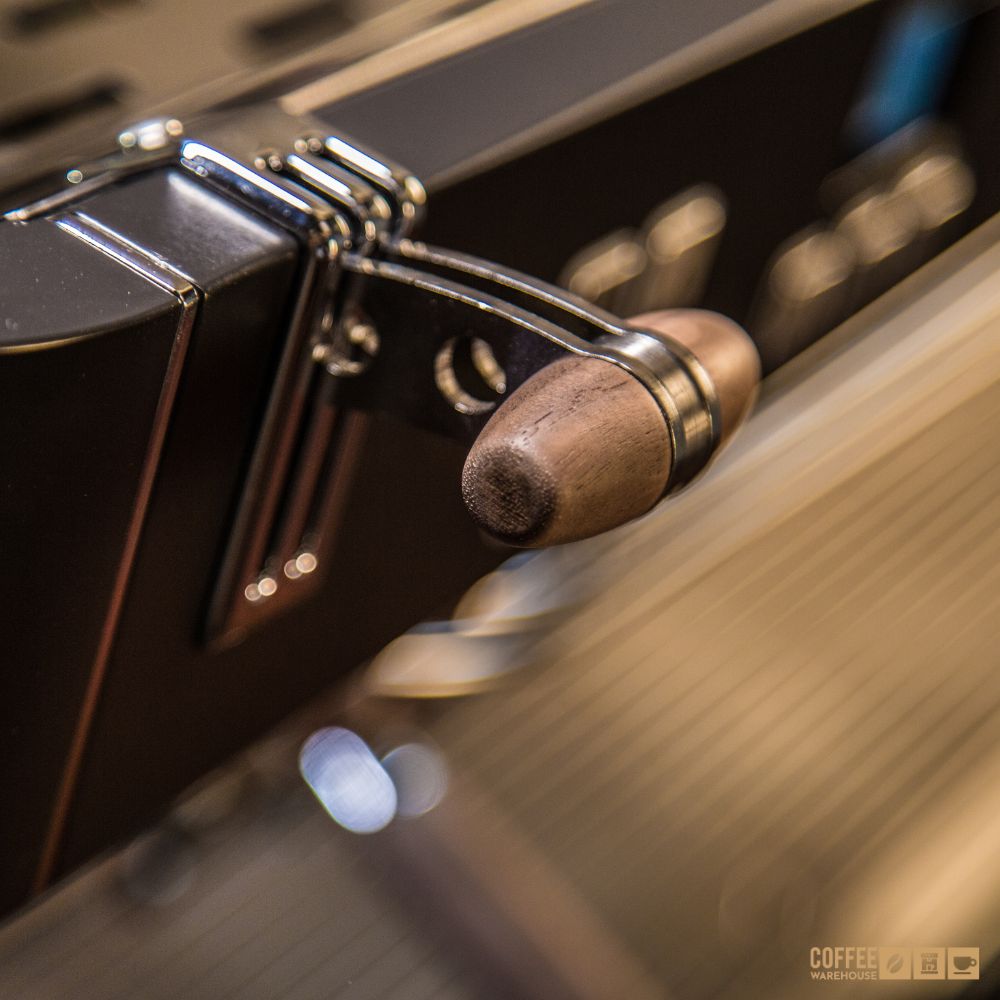

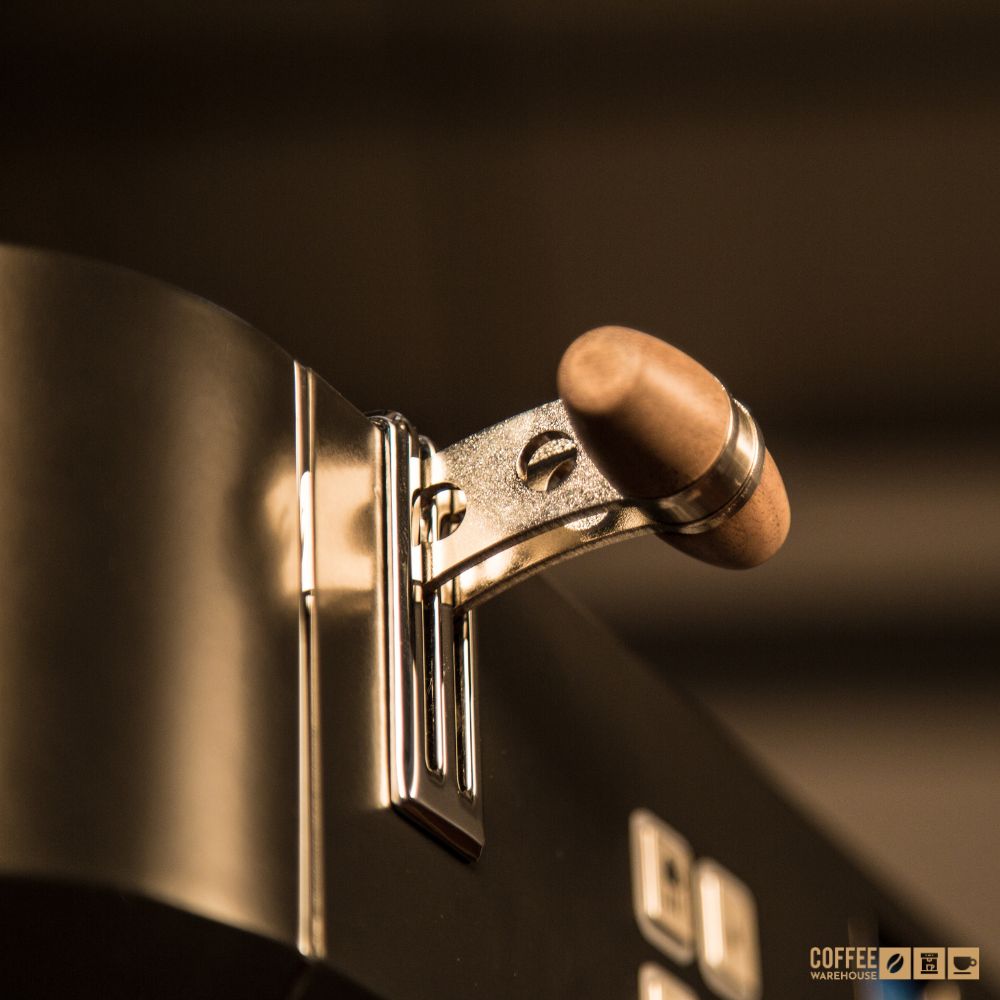

Adjust flow while the extraction is running. XT gives the barista manual flow profiling on each group. Flow rate can be changed in real time, providing another variable for adapting an extraction to a particular coffee rather than relying only on a fixed recipe.

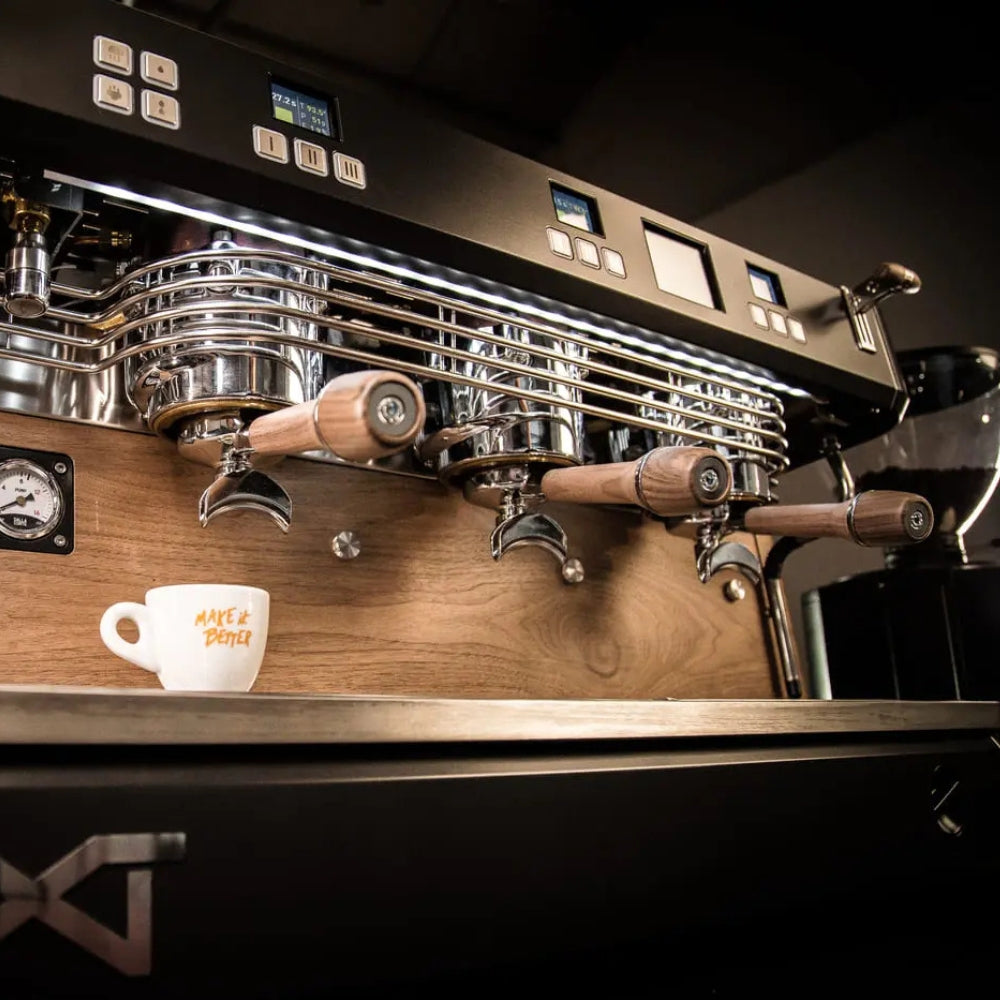

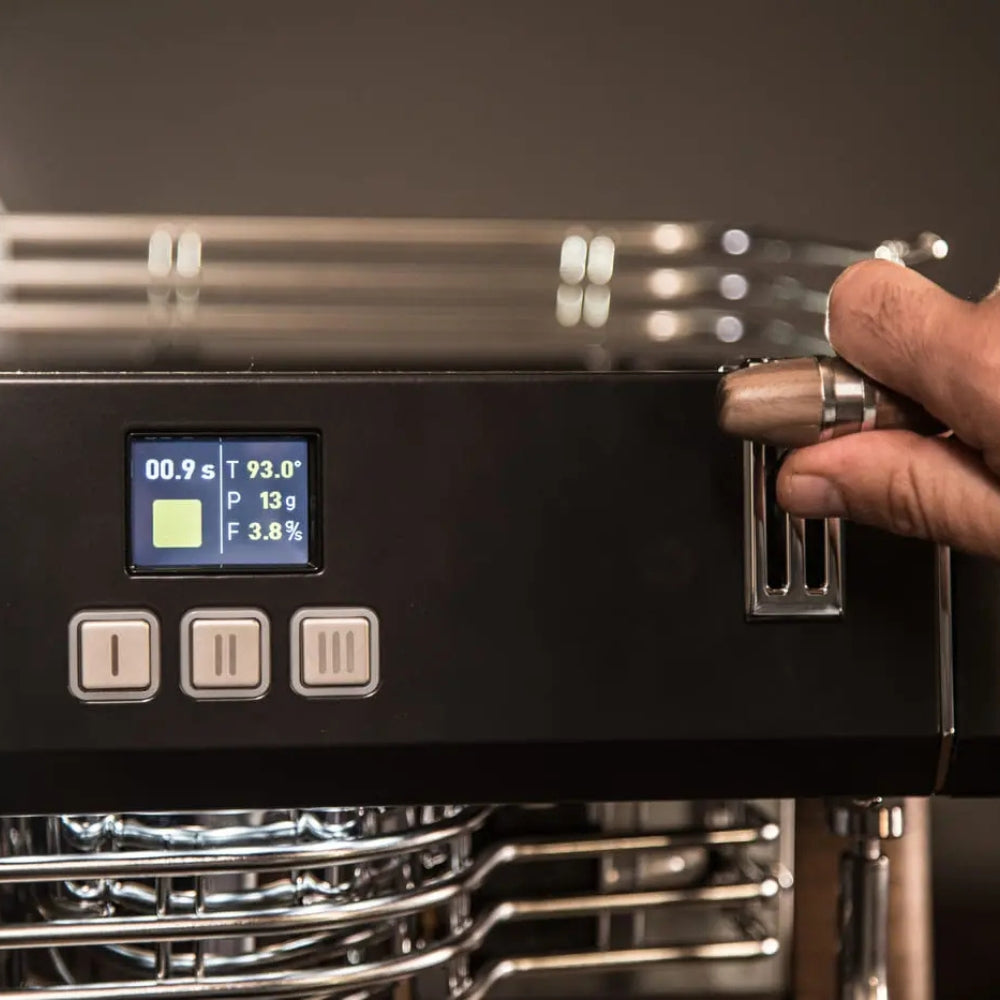

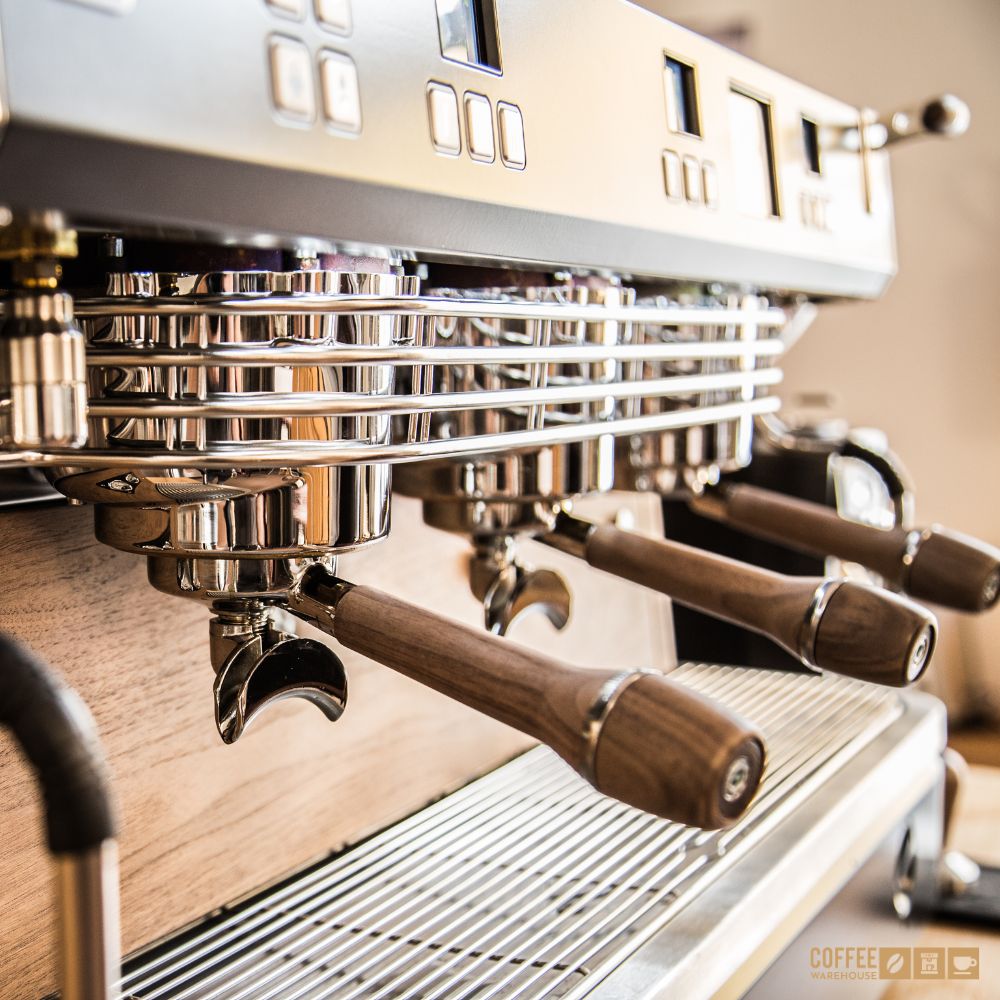

Bring that control across three groups. The 3-group configuration gives a larger bar team access to the same XT extraction platform across three working groups. Each group operates independently and displays real-time brewing variables for the barista.

Manage temperature independently. Each group is monitored by its own PID system, allowing temperature to be controlled separately. This gives cafés more flexibility when different coffees or recipes require different temperature settings during the same service period.

Keep weighing inside the machine workflow. XT's integrated Weight System converts water flow into grams and records water quantity and espresso dosage. Baristas can use this information when programming dosing buttons without depending on a separate scale for the standard workflow.

Add automatic grinder adjustment when needed. The optional Grinder Control System works with compatible Dalla Corte DC ONE and DC TWO grinders. GCS allows the machine and grinder to communicate and automatically correct grind size and dose as part of the extraction workflow.

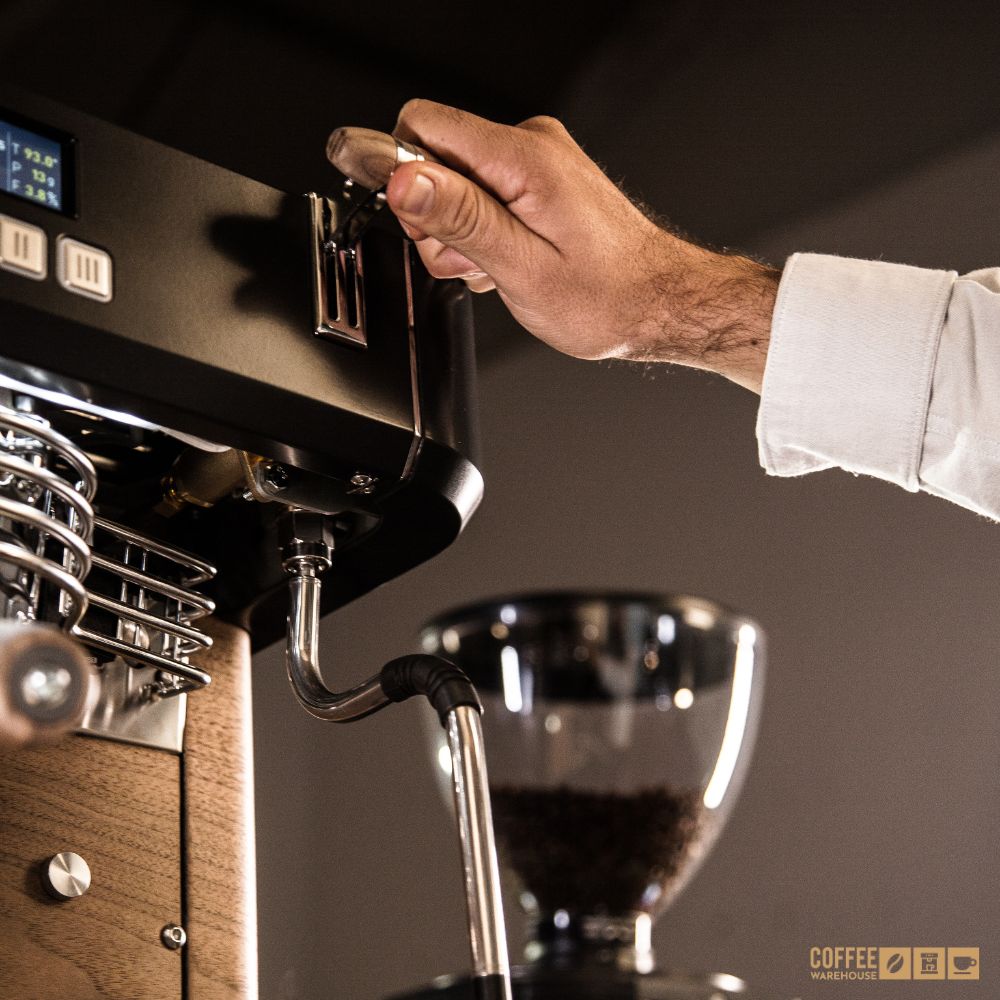

Add assisted steaming without removing the barista from the process. The optional Milk Control System is a button-activated steam wand. The barista sets the target temperature, positions the pitcher and wand, then starts the steaming cycle. The system manages the temperature endpoint while the wand design creates the milk vortex.

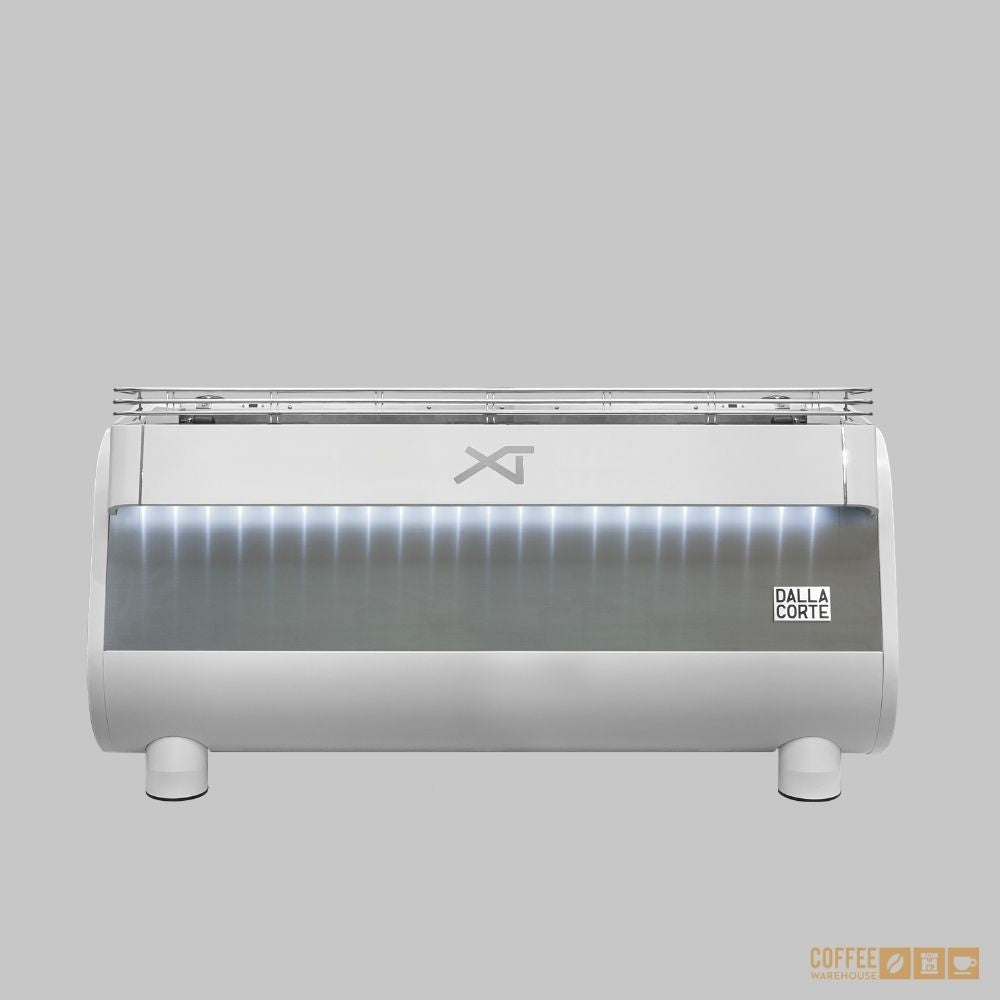

Support scheduled and lower-power operation. The XT includes a timer and low-power system, along with Dalla Corte's listed energy-saving functionality. Backlighting and RS 232/485 serial connectivity are also included.

FAQs

Does the Dalla Corte XT Barista 3 Group have flow profiling?
Yes. The XT provides manual flow profiling for each group, allowing baristas to adjust the flow rate in real time during extraction.

Can each group on the Dalla Corte XT use a different temperature?
Yes. Each group is managed by its own PID system, allowing temperature to be controlled independently for different coffee recipes.

Does the Dalla Corte XT need external scales?
The XT includes an integrated Weight System that converts water flow into grams and records water quantity and espresso dosage, reducing the need for separate scales during the standard dosing workflow.

Does the Dalla Corte XT automatically adjust the grinder?
Grinder Control System is optional. When configured with a compatible Dalla Corte DC ONE or DC TWO grinder, GCS allows the machine and grinder to communicate for automatic grind size and dose adjustment.

Does the Dalla Corte XT have automatic milk frothing?
The optional Milk Control System provides assisted milk steaming rather than a fully automatic milk dispenser. The barista positions the milk pitcher and steam wand, selects the target temperature and starts the steaming cycle.

Is Coffee Warehouse an authorized Dalla Corte dealer, and what warranty does the XT include?
Yes. Coffee Warehouse is an authorized Dalla Corte dealer, and the Dalla Corte XT includes a 1-year warranty on parts and motor.

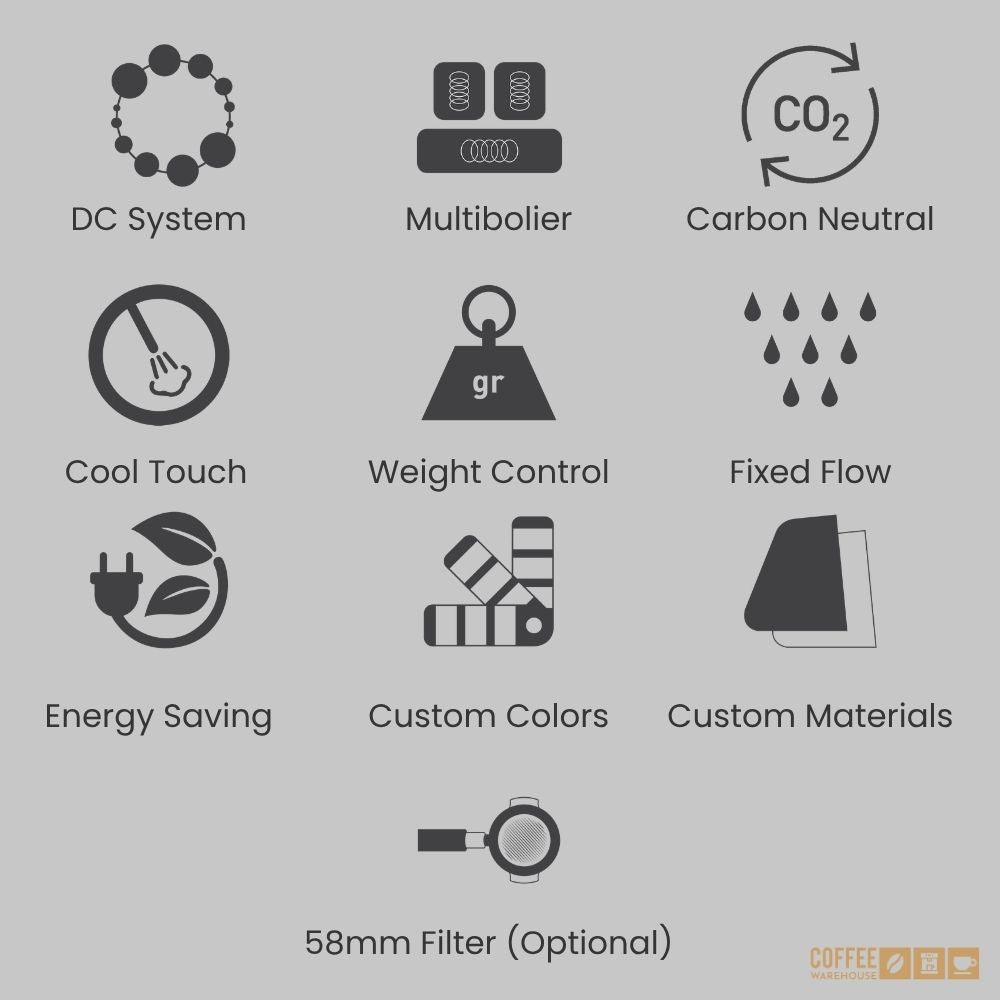

Specifications

Machine type: Traditional commercial multi-boiler espresso machine
Model: XT Barista
Configuration: 3 Group
Flow control: Manual flow profiling by group
Weight control: Integrated Weight System
Temperature control: Independent PID control by group
Group capacity: 0.5 L per group
Main boiler capacity: 3.4 gal (13 L)
Grinder Control System: Optional
GCS grinder compatibility: Dalla Corte DC ONE and DC TWO
Milk Control System: Optional
Cool Touch: Standard
58 mm filter: Optional
Low-power system: Included
Timer: Included
Backlight: Included
Serial connection: RS 232/485

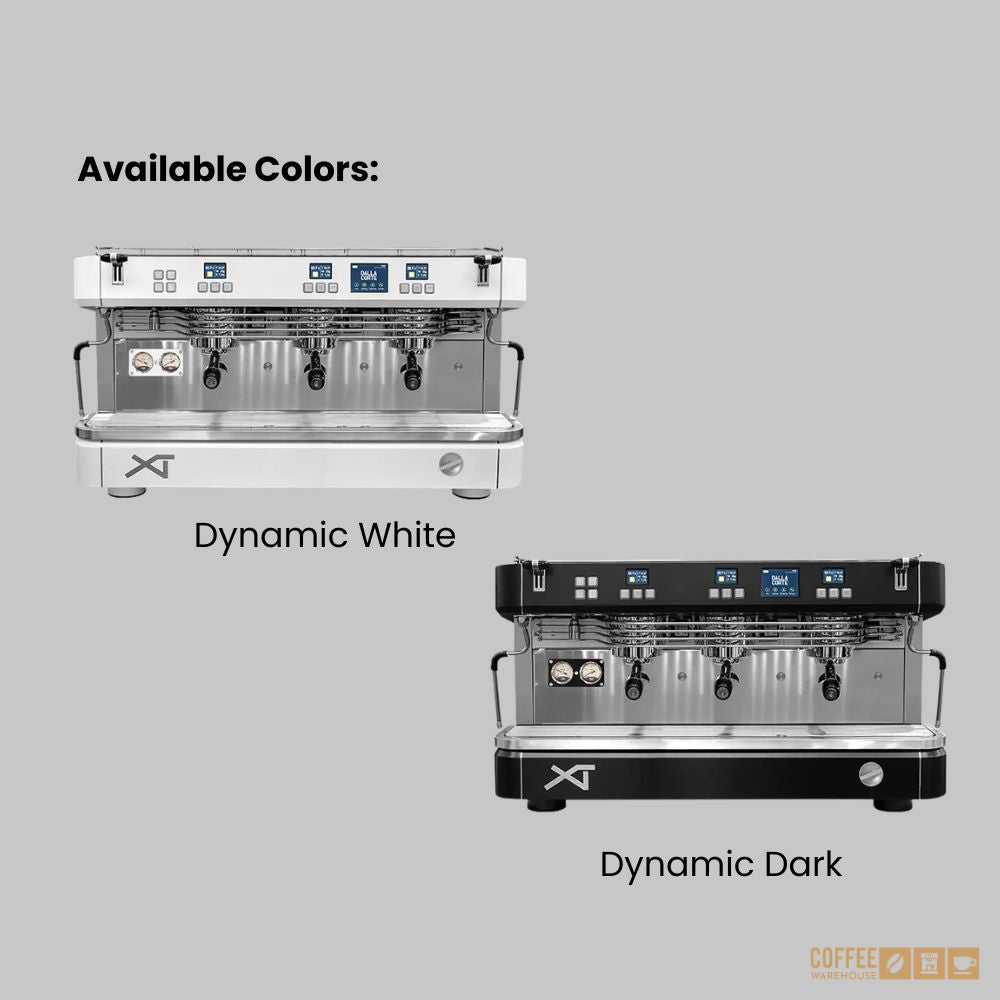

Custom colours: Available
Custom materials: Available

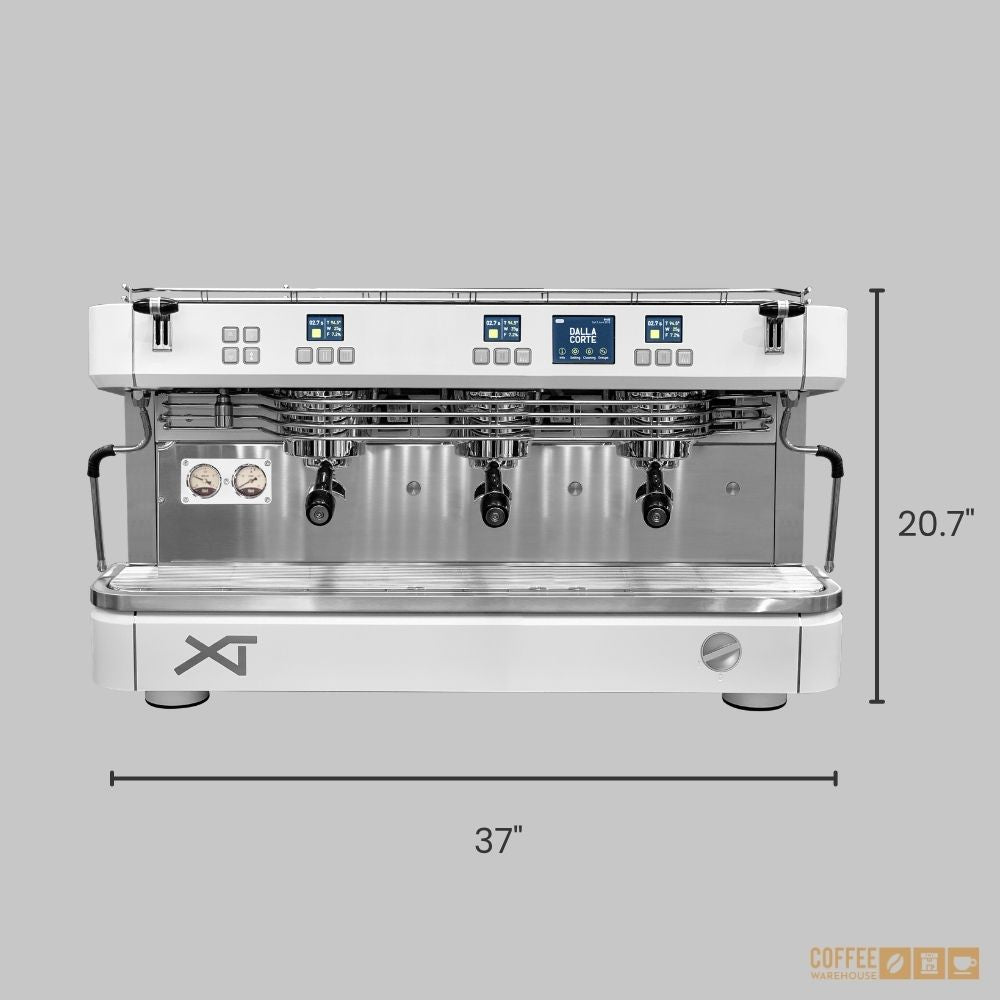

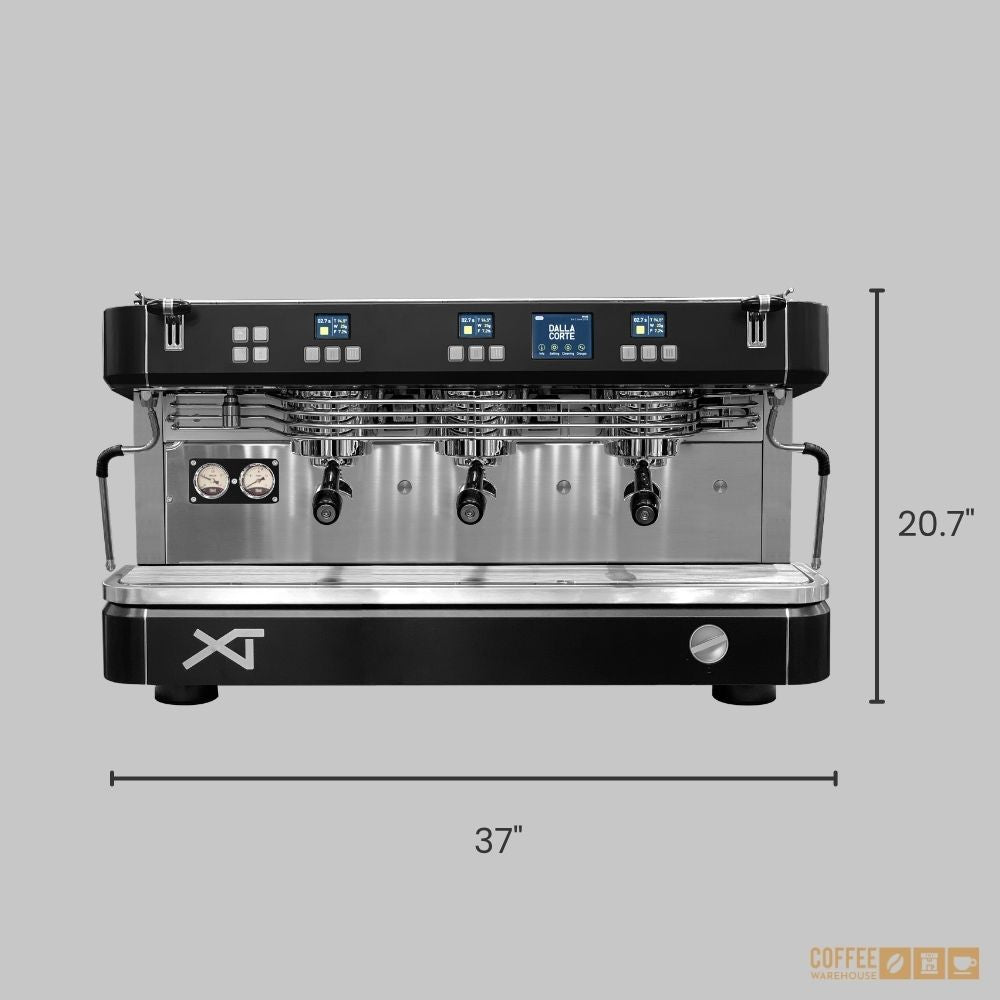

Dimensions: 37.0 × 20.7 × 20.1 in (940 × 525 × 510 mm)
Weight: 194.0 lbs (88 kg)
Maximum power: 6.3 kW
Connected load: 230/240 V 1 Ph, 200/230 V 3, 400 V 3 N
24-hour standby power consumption: 11.3 kW
Carbon emissions: Production emissions offset by Dalla Corte
Warranty: 1 year on parts and motor
