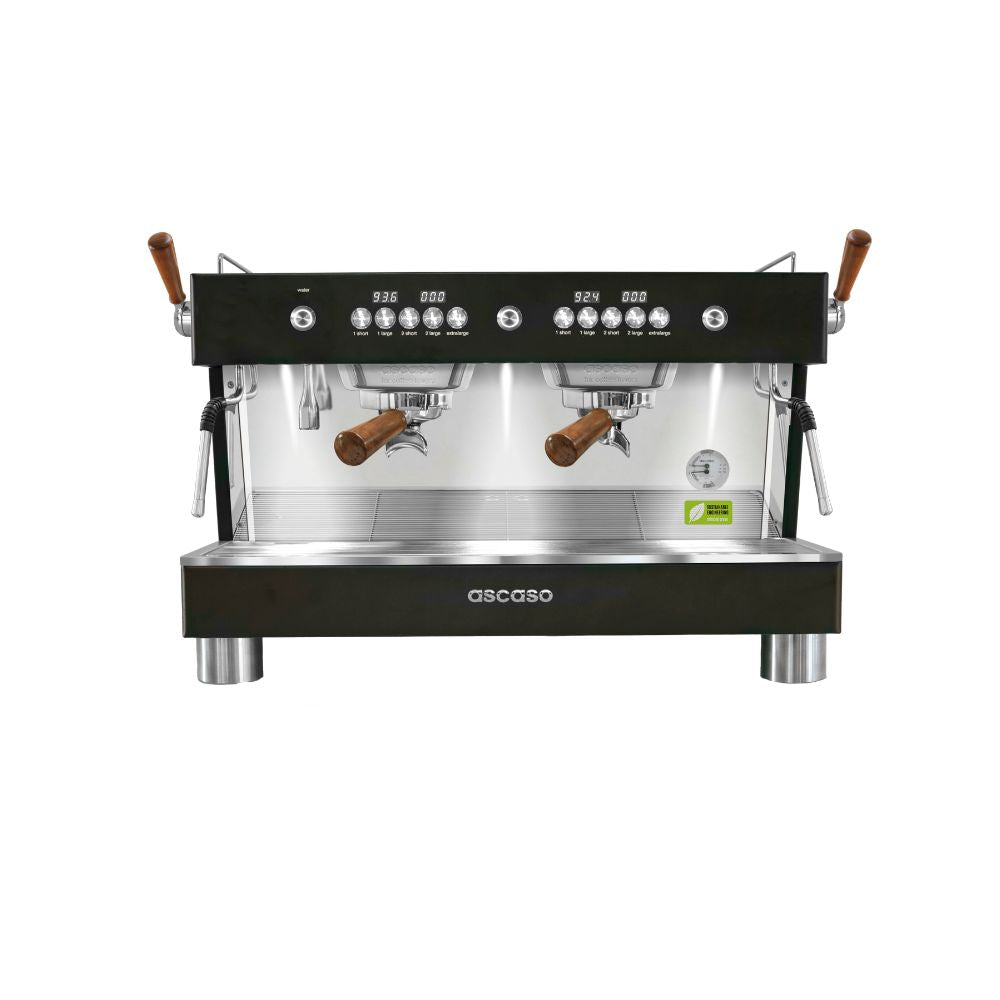

Ascaso Barista T Plus 2 Group Espresso Machine – Black

Ascaso Barista T Plus 2 Group Espresso Machine – Black

Maximum Thermal Stability. Advanced Energy Efficiency. Built for Professional Coffee Service.

The Ascaso Barista T Plus 2 Group Espresso Machine is a premium commercial espresso machine engineered for specialty cafés and demanding barista environments that require exceptional temperature precision, sustainable energy performance, and advanced workflow customization.

Built around Ascaso’s innovative T Technology©, the Barista T Plus combines independent professional thermoblocks, insulated coffee groups, an independent stainless steel steam boiler, and full PID management to deliver precise extraction stability with significantly lower energy consumption.

Designed and manufactured in Spain, the Barista T Plus blends modern industrial styling with advanced café-focused engineering for high-volume professional espresso service.

Key Features

• T Technology© Multi-Group System – Independent coffee groups with advanced thermodynamic control
• Independent Stainless Steel Steam Boiler – Large-capacity AISI 316 steam boiler
• Full PID Temperature Control – Independent adjustment for coffee groups and steam boiler
• Exceptional Thermal Stability – ±0.5°C precision during extraction
• Dynamic Preheating System – Faster warm-up and stable group temperatures
• Programmable Pre-Infusion – Adjustable with 0.1 second precision
• Energy Efficient System – Up to 50% lower energy consumption
• Insulated Coffee Groups & Steam Boiler – Improved efficiency and stability

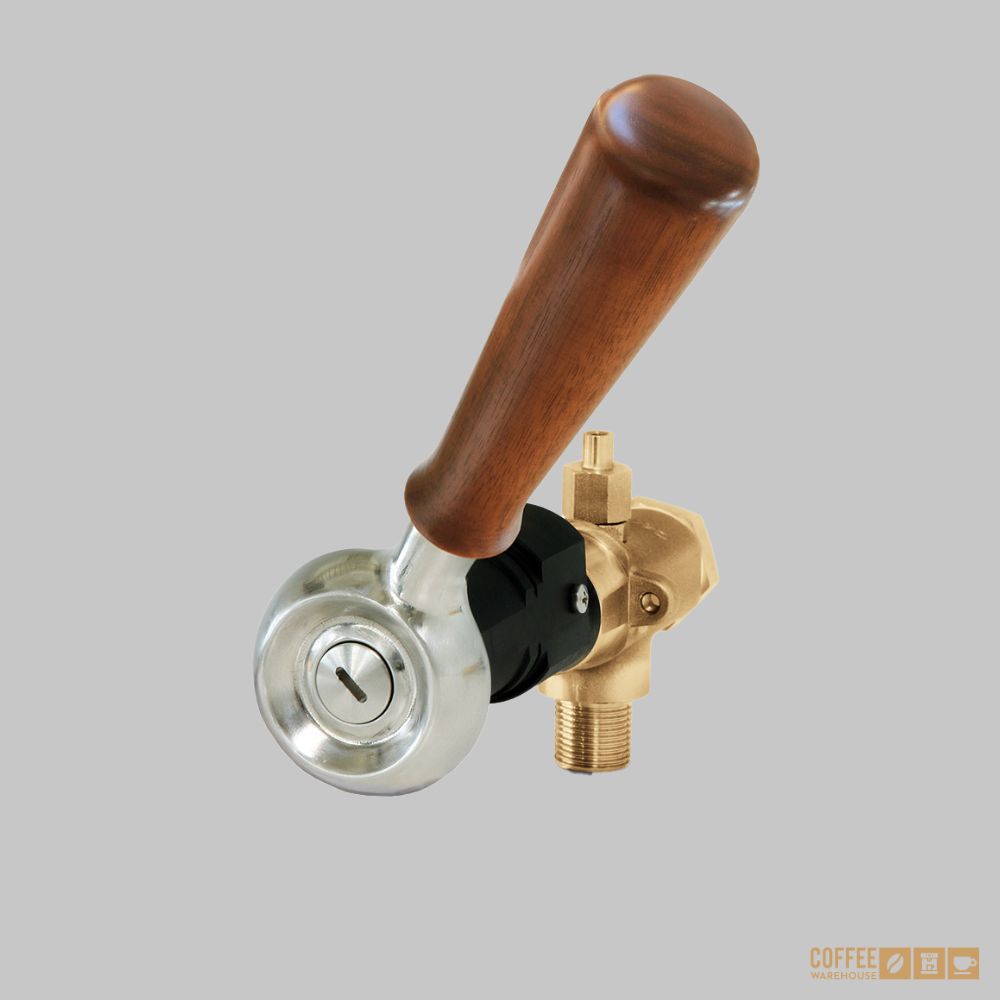

• Joystick Steam Controls – Fast and ergonomic steam operation
• Walnut Wood Accents – Premium commercial styling
• Active Cup Warmer – Keeps cups ready for service
• App Connectivity – Android-compatible monitoring and control

Advanced T Technology© System

The Barista T Plus moves beyond traditional heat exchanger espresso systems by using independent thermoblocks and a separate steam boiler for greater precision and efficiency.

This design delivers:

• Fresh water for every extraction
• Reduced thermal fluctuation
• Rapid heat-up times
• Independent group operation
• Lower energy waste
• Greater café workflow flexibility

Each coffee group can be activated independently, helping cafés reduce energy usage during slower service periods.

Precision Extraction Control

The Barista T Plus gives baristas full control over brewing parameters with advanced digital controls and programmable extraction management.

• External PID control for each group
• Steam boiler PID management
• Volumetric dosing
• Programmable extraction timers
• Digital multifunction displays
• Programmable pre-infusion
• Shot statistics tracking

Coffee temperatures can be adjusted from 80°C to 110°C in 0.1°C increments, while steam temperatures can be adjusted from 110°C to 165°C.

Designed for Professional Workflow

The Barista T Plus is engineered for busy commercial environments with features that improve speed, ergonomics, and reliability.

• 2 Cool Touch stainless steel steam wands
• Joystick steam activation
• Separate anti-splash hot water outlet
• LED illuminated work area
• Commercial 58mm portafilters
• Chrome-plated adjustable feet
• Stainless steel wire tray

The high-performance rotary pump maintains stable pressure even during simultaneous extractions and steaming.

Sustainable Engineering & Energy Efficiency

The Barista T Plus was designed to reduce energy consumption without sacrificing professional café performance.

• Smart energy management system
• Insulated steam boiler
• Insulated coffee groups
• Rapid warm-up technology
• Programmable standby mode
• Independent group power management

Compared to traditional single-boiler commercial machines, the Barista T Plus can reduce energy usage by approximately 50%.

Specifications

• Model: BT.14U / 5USBTP2GR04
• Configuration: 2 Group
• Color: Black
• Machine Type: Commercial Espresso Machine
• Pump Type: Rotary Pump
• Steam Boiler Material: Stainless Steel AISI 316
• Steam Boiler Capacity: 8.5 L
• Steam Wands: 2 Cool Touch Stainless Steel
• Steam Wand Controls: Joystick
• Hot Water Wand: 1 Anti-Splash Solenoid Outlet
• Coffee Group Power: 1000 W × 2
• Boiler Power: 3500 W
• Motor Power: 165 W
• Voltage: 220–240 V / 380 V
• Frequency: 50–60 Hz
• Dimensions (W × H × D): 28 × 19 × 21 in
• Weight: 156.52 lbs
• Max Cup Height: 3.5" standard / 4.75" raised
• PID Temperature Control: Yes
• Steam Temperature PID: Yes
• Digital Multifunction Display: Yes
• Volumetric Dosing: Yes
• Extraction Timer: Yes
• Statistics Function: Yes
• Programmable Pre-Infusion: Yes
• Dynamic Preheating: Yes
• Thermal Stability: ±0.5°C
• Barista Lights: Yes
• Electronic Auto Level: Yes
• Dual Pressure Gauge: Yes
• Adjustable Feet: Yes
• Programmable Standby: Yes
• Power Guard System: Yes
• Group Heating Element: Yes
• Insulated Coffee Groups: Yes
• Insulated Steam Boiler: Yes
• Insulated Tubes: No
• Active Cup Warmer: Yes
• Work Area Lighting: Yes
• Wood Accessories: Walnut
• Chromed Feet: Yes
• Stainless Steel Wire Tray: Yes
• App Connectivity: Yes (Android)
• Illuminated Side Panels: Optional
• Automatic Milk System: No
• Auto Steam Wand: No
• Built-in Grinder: No
• Touchscreen Display: No

What’s in the Box

Barista T Plus 2 Group Espresso Machine | Walnut Handle Single Spout Portafilter | 2 Walnut Handle Double Spout Portafilters | 7g Filter Basket | 2 x 14g Filter Baskets | Blind Filter | Standard Stainless Steel Shower Screen | Aluminum Tamper

Perfect For

• Specialty coffee cafés
• High-volume commercial espresso bars
• Professional barista environments
• Cafés focused on extraction precision
• Operators seeking lower energy consumption
• Businesses wanting advanced thermal stability

Why Choose the Ascaso Barista T Plus?

The Ascaso Barista T Plus combines advanced thermoblock engineering, exceptional PID-controlled thermal stability, insulated commercial components, and premium café-focused workflow features in one modern espresso platform.

With independent coffee groups, rapid dynamic preheating, programmable extraction control, walnut detailing, and sustainable energy-efficient design, the Barista T Plus delivers professional-level consistency while reducing operating costs and improving workflow performance.

Professional precision. Sustainable performance. Built for modern specialty coffee.
